Doors can be the most prominent feature in any barn. If you choose to build your own swinging barn doors, System Fencing’s quality hardware is second to none. Heavy-duty adjustable hinges allow you to fully manipulate any twisting or warping of the door. A 3/15″ steel base on 16″ or larger hinges will provide you with enough strength for the heaviest of doors while maintaining the classic hinge look. Choose from our heavy-duty iron grip latch, flush mount latch, or a variety of steel door latches to easily operate your door and maintain their functionality for a lifetime
(K) Horseshoe Door Latch Locking
- Part # 364-HL
- Can be used on sliding or hinged doors when the appropriate catch is used
- Aesthetically pleasing and functional
(K) Horseshoe Door Latch Locking (Painted)
- Part # 365-HL
- Can be used on sliding or hinged doors when the appropriate catch is used
- Aesthetically pleasing and functional
- Black powder-coated
Door Latch Easy Latch
- Part # 364-DLEL
- New heavy-duty design for barn doors
- Made of all ductile cast iron material (very strong, long-lasting metal)
- Yellow zinc chromate plating for rust prevention
- Adjustable for 1 1/8" to 2 1/4" thick door
- Stainless steel spring for long life
- Plunger and striker polished smooth for maximum performance
- New bottom support plate for smooth operation and easy installation
- Parts included: closing pin latch, female door handle, cover plate, door pin catch, 10 #8 x 1 1/2" screws, paper template for mounting
(K) Iron Grip Latch Heavy-Duty Latch with Cast Handle 2" to 5" (Black)
- Part # 365-100
- One of best latches for farm facility doors
- Heavy iron handle on one side and heavy flat bar on other side make for a positive slam locking door latch
- Comes powder coat painted or can be custom ordered with a zinc plated finish
- Supplied with all fasteners for normal installation
- For door widths 2" to 5" thick

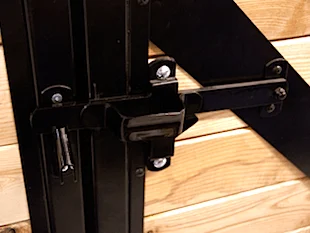

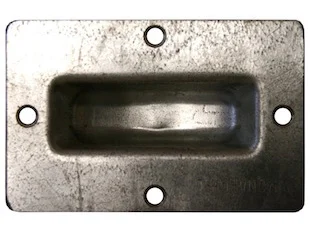

Flush Mount Latch (Black)
- Part # 365-DL152
- Operated from either side of a door
- Flush cup to allow installation on sliding and swinging doors
- Door thickness up to 2 3/4" with bar size of 1 1/2" x 5/16" x 14"
Martins Large Heavy-Duty Door Latch (Zinc-Plated)
- Part # 364-DLHD
- Large barn door latch
- Heavy-duty zinc-plated construction
- Excellent for use on barn doors and/or sheds
- Can be padlocked
- For doors from 1 1/4" to 2 3/4" thick
- Includes fastening hardware
Martins Small Heavy-Duty Door Latch (Stainless Steel)
- Part # 364-DLHDSS
- Smaller barn door latch
- Heavy-duty stainless steel construction
- Excellent for use on barn doors and/or shed doors
- Can be padlocked
- For doors from 1 3/4" to 2 1/2" thick
- Includes fastening hardware
Heavy-Duty Drop Latch
(Zinc-Plated)
- Part # 364-DLHDZP
- Spring-loaded drop door latch
- For doors 2 1/4" to 3" thick
Spring Bolt with Chain
- Part # 364-DLSB
- Housing is 5 1/2" high x 2 7/8" wide with a beveled bolt
- Self-closing for the top of a Dutch or double Dutch door
(K) Cane Bolt 1/2" x 12"
- Part # 364-DLCB
- Cane bolts are used to hold the bottom of a door in place when two doors meet and only one is used at a time
- Formed bar steel with holding brackets
- Can also be used to secure one of the gates when you have a double gate; once the first gate is secured, the second gate can be latched to the first gate with a gate latch
- Another use for the cane bolt is to secure any gate in the open position
(K) Cane Bolt 3/4" x 24"
- Part # 364-DLCB24
- Cane bolts are used to hold the bottom of a door in place when two doors meet and only one is used at a time
- Formed bar steel with holding brackets
- Can also be used to secure one of the gates when you have a double gate; once the first gate is secured, the second gate can be latched to the first gate with a gate latch
- Another use for the cane bolt is to secure any gate in the open position
Hinge 10" Tee (Galvanized)
- Part # 364-210T
- Super heavy-duty construction
- Hot-dipped galvanized metal
- Removable pins
Fasteners (not included):
We have not specified a length, as it will depend on the style and thickness of your door. Different fasteners will need to be used if attaching to steel. Hole sizes are specified, choose the appropriate steel fasteners if required.
Door Side:
Quantity: 4
#14 Screws or 5/16″ Lag Bolts
Frame Side:
Quantity: 7
5/16″ Lag Bolts
Hinge 8" Tee (Galvanized)
- Part # 364-28T
- Super heavy-duty construction
- Hot-dipped galvanized metal
- Removable pins
Fasteners (not included):
We have not specified a length, as it will depend on the style and thickness of your door. Different fasteners will need to be used if attaching to steel. Hole sizes are specified, choose the appropriate steel fasteners if required.
Quantity: 8
#14 Screws
(K) Hinge 12" x 2" (Galvanized)
- Part # 364-212S
- Heavy-duty hinge for doors weighing up to 200 lbs
- Stainless steel pin and brass washers
- 1/4" thick x 2" wide with 4 1/2" x 1 5/16" mounting plate
Fasteners (not included):
We have not specified a length, as it will depend on the style and thickness of your door. Different fasteners will need to be used if attaching to steel. Hole sizes are specified, choose the appropriate steel fasteners if required.
Door Side:
Quantity: 3
3/8″ Carriage Bolts
Frame Side:
Quantity: 3
1/4″ Lag Bolts
Hinge 12" x 2" (Black)
- Part # 365-212S
- Heavy-duty hinge for doors weighing up to 200 lbs
- Black powder-coated with stainless steel pin and brass washers
- 1/4" thick x 2" wide with 4 1/2" x 1 5/16" mounting plate
Fasteners (not included):
We have not specified a length, as it will depend on the style and thickness of your door. Different fasteners will need to be used if attaching to steel. Hole sizes are specified, choose the appropriate steel fasteners if required.
Door Side:
Quantity: 3
3/8″ Carriage Bolts
Frame Side:
Quantity: 3
1/4″ Lag Bolts
36" Strap Hinge with Bearing (Black)
- Part # 365-236S

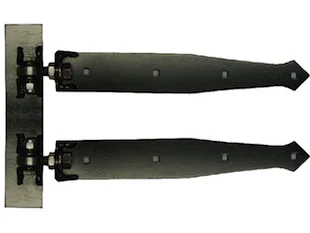

(K) 16" Heavy-Duty Rockwood Adjustable Double Strap Hinge (Black)
- Part # 365-216AD
- Creates a very strong & unique look
Fasteners (not included):
We have not specified a length, as it will depend on the style and thickness of your door. Different fasteners will need to be used if attaching to steel. Hole sizes are specified, choose the appropriate steel fasteners if required.
Door Side:
Quantity: 8
3/8″ Carriage Bolts or Lag Bolts
Frame Side:
Quantity: 8
1/4″ Lag Bolts
(K) 16" Heavy-Duty Rockwood Decorative Back Plate (Black)
- Part # 365-216BP
- Creates a consistent look and feel of an old English door system
- Can be added to the interior or exterior of any door
- The laser cut plate lines up with the hinge holes so a carriage bolt can be used to bolt directly through the door and creates a very strong sandwich door system
- Available to match both the Rockwood and Madison door systems
Fasteners (not included):
We have not specified a length, as it will depend on the style and thickness of your door. Different fasteners will need to be used if attaching to steel. Hole sizes are specified, choose the appropriate steel fasteners if required.

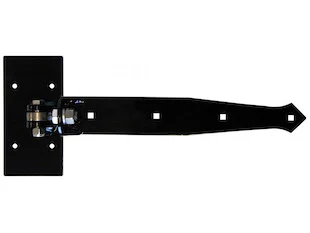

(K) 16" Heavy-Duty Rockwood Adjustable Hinge (Black)
- Part # 365-216A
- Creates a very strong & unique look
Fasteners (not included):
We have not specified a length, as it will depend on the style and thickness of your door. Different fasteners will need to be used if attaching to steel. Hole sizes are specified, choose the appropriate steel fasteners if required.
Door Side:
Quantity: 4
3/8″ Carriage Bolts or Lag Bolts
Frame Side:
Quantity: 4
1/4″ Lag Bolts

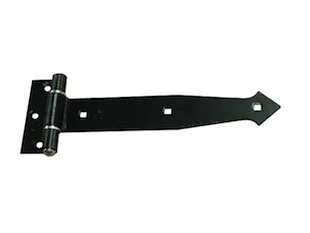

Hinge 1" Set Back 16" Long (Black)
- Part # 365-216S
- Heavy-duty 16″ strap hinge with a 1″ offset back into the door opening
- Creates a very strong & unique look
Fasteners (not included):
We have not specified a length, as it will depend on the style and thickness of your door. Different fasteners will need to be used if attaching to steel. Hole sizes are specified, choose the appropriate steel fasteners if required.
Door side:
Quantity: 4
3/8″ Carriage Bolts or Lag Bolts
Frame side:
Quantity: 4
1/4″ Lag Bolts
Hinge 24" Strap (Black)
- Part # 365-224S
- Heavy-duty 24″ strap hinge with a 1″ offset back into the door opening
- Creates a very strong & unique look
Fasteners (not included):
We have not specified a length, as it will depend on the style and thickness of your door. Different fasteners will need to be used if attaching to steel. Hole sizes are specified, choose the appropriate steel fasteners if required.
Door side:
Quantity: 4
3/8″ Carriage Bolts or Lag Bolts
Frame side:
Quantity: 4
1/4″ Lag Bolts
(K) 24" Adjustable Double Strap Hinge (Black)
- Part # 365-224AD
- Creates a very strong & unique look
Fasteners (not included):
We have not specified a length, as it will depend on the style and thickness of your door. Different fasteners will need to be used if attaching to steel. Hole sizes are specified, choose the appropriate steel fasteners if required.
Door side:
Quantity: 8
3/8″ Carriage Bolts or Lag Bolts
Frame side:
Quantity: 8
1/4″ Lag Bolts
(K) 36" Adjustable Double Strap Hinge (Black Extra Long)
- Part # 365-236AD
- Creates a very strong & unique look
Fasteners (not included):
We have not specified a length as it will depend on the style and thickness of your door. Different fasteners will need ot be used if attaching to steel. Hole sizes are specified, choose the appropriate steel fasteners if required.
Door side:
Quantity: 8
3/8″ Carriage Bolts or Lag Bolts
Frame side:
Quantity: 8
1/4″ Lag Bolts

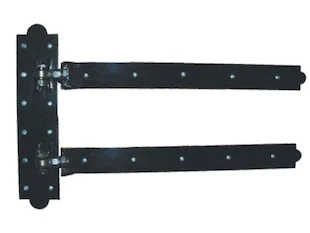

(K) 24" Heavy-Duty Madison Adjustable Double Strap Hinge (Painted)
- Part # 365-224ADM
- Creates a very strong & unique look
Fasteners (not included):
We have not specified a length, as it will depend on the style and thickness of your door. Different fasteners will need to be used if attaching to steel. Hole sizes are specified, choose the appropriate steel fasteners if required.
Door side:
Quantity: 10
5/16″ Lag Bolts
Frame side:
Quantity: 6
1/4″ Lag Bolts

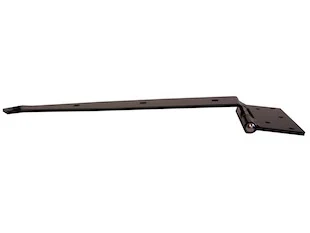

(K) 24" Heavy-Duty Madison Adjustable Strap Hinge (Painted)
- Part # 365-224AM
- Creates a very strong & unique look
Fasteners (not included):
We have not specified a length, as it will depend on the style and thickness of your door. Different fasteners will need to be used if attaching to steel. Hole sizes are specified, choose the appropriate steel fasteners if required.
Door side:
Quantity: 5
5/16″ Lag Bolts
Frame side:
Quantity: 6
1/4″ Lag Bolts
(K) Madison Decorative Back Plate
- Part # 365-224BPM
- Creates a consistent look and feel of an old English door system
- Can be added to the interior or exterior of any door
- The laser cut plate lines up with the hinge holes so a carriage bolt can be used to bolt directly through the door and creates a very strong sandwich door system
- Available to match both the Rockwood and Madison door systems
(K) 36" Adjustable Strap Hinge (Black Extra Long)
- Part # 365-236A
- 1″ offset back into door opening
- Creates a very strong & unique look
Fasteners (not included):
We have not specified a length, as it will depend on the style and thickness of your door. Different fasteners will need to be used if attaching to steel. Hole sizes are specified, choose the appropriate steel fasteners if required.
Door side:
Quantity: 5
3/8″ Carriage Bolts or Lag Bolts
Frame side:
Quantity: 4
1/4″ Lag Bolts

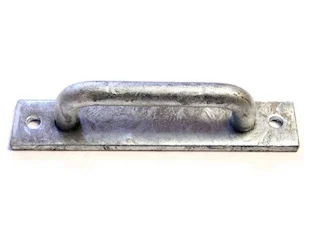

(K) Horseshoe Door Latch for Hinged Door (Galvanized)
- Part # 364-HLH
- The horseshoe latch is available for installation on a swinging door
- Hot-dipped galvanized
- Use this 5/8″ steel catch for use on the swinging door
- Made heavy-duty to last
(K) Horseshoe Door Latch for Hinged Door (Painted)
- Part # 365-HLH
- The horseshoe latch is available for installation on a swinging door
- Hot-dipped galvanized
- Use this 5/8″ steel catch for use on the swinging door
- Made heavy-duty to last

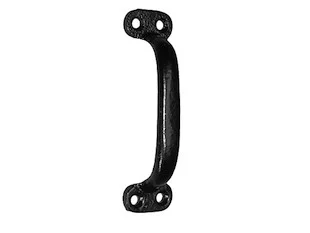

Door Handle (Black)
- Part # 365-DLBH
- Heavy-duty door handle
- Black only
- Handle 3 3/4″ handle area and 6 1/4″ overall length
